O desempenho de acordo com a robustez e, acima de tudo, confiabilidade.

Este computador é conhecido como o melhor laser portátil da soldadura de máquina para fabricação de metal, oferecendo precisos e eficientes de soldagem soluções.

Catálogo Aberto
HWIEiC

De mão de Laser a Fibra, a Máquina de Soldadura HJ Série - Características e Configuração

Multi-functional 5-in-1 fiber laser welding machine, equipped with RelFar double wobble system, can do industrial welding, power battery welding, cleaning (rust removing), weld seam cleaning, cutting. 5 working modes can be flexibly switched.

laser welding

A sua velocidade de soldagem é multiplicado, cerca de 3 a 10 vezes mais rápido do que a tradição

laser cutting

• Precise, aesthetic welds for micro parts • Minimal grinding with smooth laser start/stop

laser cleaning

• Low heat input ensures strong, clean welds

laser weld cleaning

Perceber bunda, se sobrepõem, de ponto, escala de peixes, stud, T-comum, interna, externa, soldagem, etc.

Energy storage battery welding

Aplicar para aço carbono, aço inoxidável, liga de AL, chapas galvanizadas, laminados a frio de folhas, liga de titânio, etc.

Pipe welding Cutting Energy

De mão de Laser a Fibra, a Máquina de Soldadura HJ Seriesr Com Robusto, Seguro, Essencial

Núcleo De Desempenho E Estruturais Vantagens

PEDIDO DE INFORMAÇÕES

  • Multi-functional 5-in-1 fiber laser welding machine, equipped with RelFar double wobble system, can do industrial welding, power battery welding, cleaning (rust removing), weld seam cleaning, cutting. 5 working modes can be flexibly switched.

  • Handheld type, with longer cable (9 meter outside of machine, optional 20 and 30 meters);

  • Besides welding, the machine can do cleaning work, such as removing rusts, oil stains, etc.

  • Switching from welding function to cleaning function, only need to replace the focal lens kit and parts;

  • Power battery welding is more cost-effective with this machine. φ20mm circle and 20*5mm rectangle can be welded, both penetration welding and seam welding.

  • Thin metal cutting can be done by changing the welding nozzle to cutting nozzle.

  • Weld channel cleaning before welding, and weld seam cleaning after welding, to improve the welding result and quality.

  • Small machine body, can move easily. It is very convenient.

  • Laser power 1-3KW, very suitable for welding metal thickness up to 10mm.

  • Welding: Strong laser power melts metal and welds them in short time with very solid quality, no holes and cracks.

  • Cleaning mode: Strong laser power impacts on the metal surface and gasifies residues (rusts, oxidized layer, painting, etc.);

  • Easier and with cheaper cost to weld power battery.

  • Easy to learn and use, new users can master it with around one week practice. It saves much labor charge for you.

  • Safe, machine comes with safety goggles. CE certified laser machine.

Flexibilidade e eficiência

Garantir a segurança, maximizar a utilização do material, e agilizar as operações superiores de produtividade e economias de custo.

Por hwieic ?

  • Ultimate dinâmica e eficiência
  • A durabilidade e a confiabilidade
  • Atualizado precisão e exatidão
  • Inteligente e facilidade de uso
  • Segurança & saudável
  • Versátil automação

Desempenho Do Produto

Com controle preciso de feixe de laser, rápida velocidade de trabalho e de água de resfriamento, a máquina pode trabalhar por um longo tempo, de forma contínua. Ele tem FDA e CE, certificações.

De mão de Laser a Fibra, a Máquina de Soldadura Série de HJ
Modelo 5-in-1 laser welding machine
Machine functions Welding
Cutting
Cleaning
Weld seam cleaning
Power battery welding
Laser type Fiber laser, 1070±20nm wavelength
Potência do laser 1000w 1500w 2000w 3000w
Modo de operação Contínuo / Modulação
Requisitos de alimentação 220V/ 50Hz/60Hz 380V/50Hz/60Hz
Laser Type Fiber laser, 1070±20nm wavelength
Wobble type Double wobble (X and Y)
Welding wobble width 0-5mm
Cleaning scanning width 0-35mm
Weld seam cleaning width 0-12mm
Power battery welding size φ20mm 20mm*5mm
Assist gas Nitrogen/argon, 0.1-1Mpa



Desempenho Do Produto

A escolha confiável para reduzir custos com operação fácil

  • 5 in 1 Multifunction
  • 1-3 [kW] Laser power
  • 2 [mm] Max diameter of filler wire
  • 10 [mm] Max thickness of sheet
  • cabeça de laser Relfar
De mão de Laser a Fibra, a Máquina de Soldadura Série de HJ

Testado e aprovado Estrutura

Laser power 1-3KW, very suitable for welding metal thickness up to 10mm.

De Mão De Laser A Fibra, A Máquina De Soldadura

Weld channel weld seam cleaning mode

1). Remove oxides and other impurities, improve metal corrosion resistance.

2). Optimize the surface conditions before welding.

3). Weld seam and welding effect better and stable.

Product Details

Welding
Fiber laser welding is suitable for stainless steel, aluminum, brass and other metals or alloys. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Cleaning
Fiber laser cleaning has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear,
aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface, clean the surface oil, stains and dirt, clean the rubber mold residue. Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
Power battery welding mode
Power battery manufacturing process. Welding method and process will directly affect the cost of the battery, quality, safety and consistency of the battery.
Laser welding works by utilizing the excellent directionality and high power density of the laser beam. By focusing the laser beam in a very small area through an optical system, a heat source area with highly concentrated energy is formed at the place to be welded in a very short period of time, which results in the melting of the object to be welded and the formation of a solid weld and weld seam.

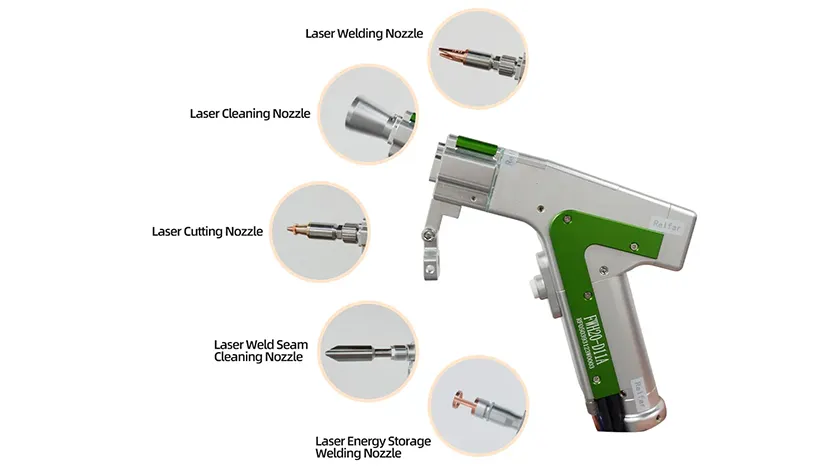

Laser nozzles

Machine is with full:

set laser welding nozzles,

laser cutting nozzles,

weld swam cleaning nozzle,

power battery welding nozzle,

laser cleaning nozzles.

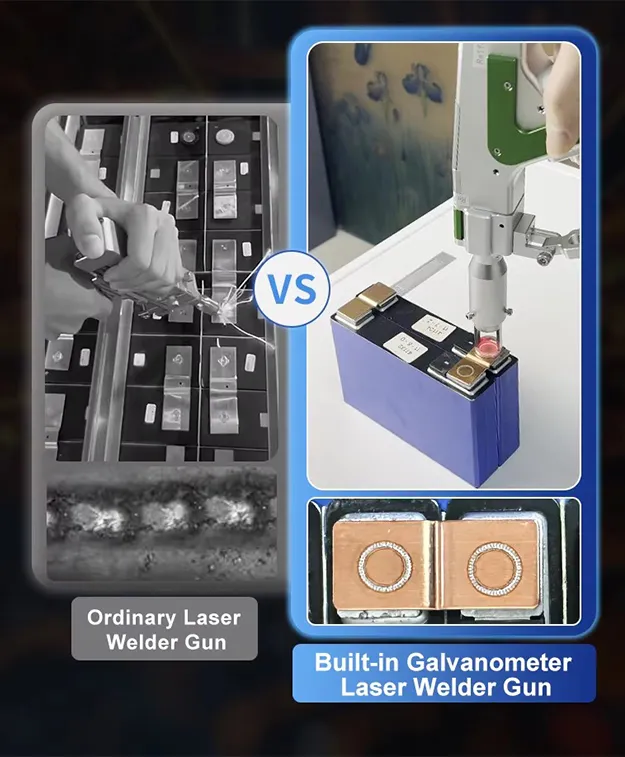

Power battery welding mode

Power battery manufacturing process. Welding method and process will directly affect the cost of the battery, quality, safety and consistency of the battery. Laser welding works by utilizing the excellent directionality and high power density of the laser beam. By focusing the laser beam in a very small area through an optical system, a heat source area with highly concentrated energy is formed at the place to be welded in a very short period of time, which results in the melting of the object to be welded and the formation of a solid weld and weld seam.

Advantages:
1). The weld surface is smooth and even, no spatter, no defects, no cracks inside the weld, ensuring that the aluminum alloy has good mechanical properties after welding. 2). In the welding of aluminum alloy, the production efficiency is high and there is no need to fill the wire. 3). There is no dent after welding, post-welding polishing and grinding is reduced, which saves production cost.

Fonte de Laser

Raycus / MAX / BWT and more brands are for your choices.
The laser source has a higher photoelectric performance conversion ability, a more stable beam, and a stronger anti-reflection ability.
Básica único plano de corte a laser, máquina de

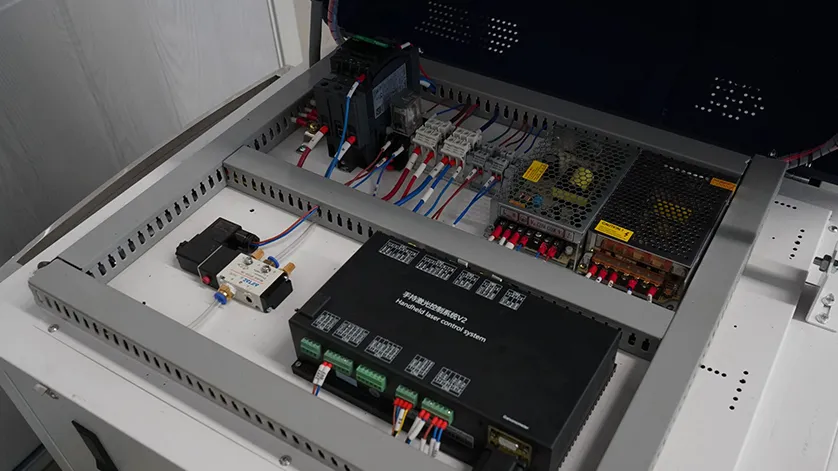

Controller and electronics

RelFar controller, CE certified power supply and electronics are used, and the wiring is neat and tidy to ensure safety and easy maintenance.

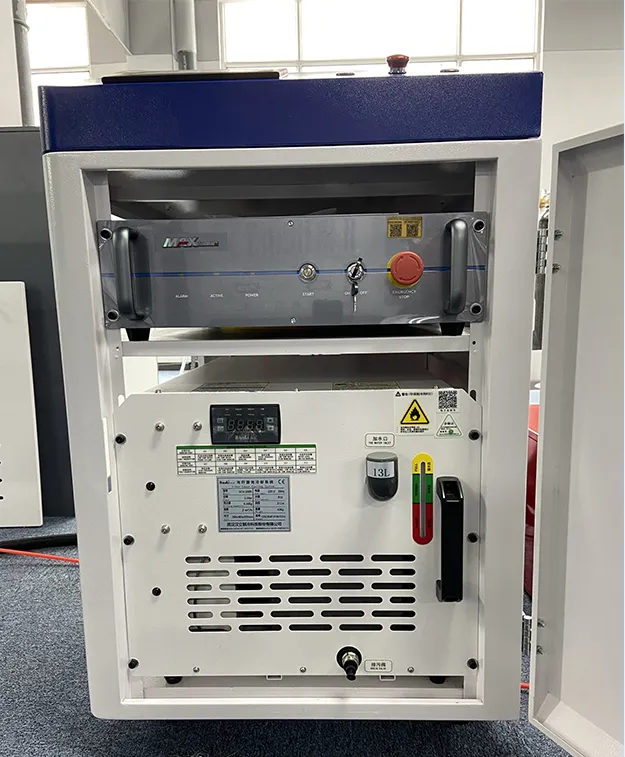

Water chiller

Water chiller for efficient cooling the laser source and optical lens to ensure stable laser output and long service life of optical parts.

Máquina De Solda A Laser

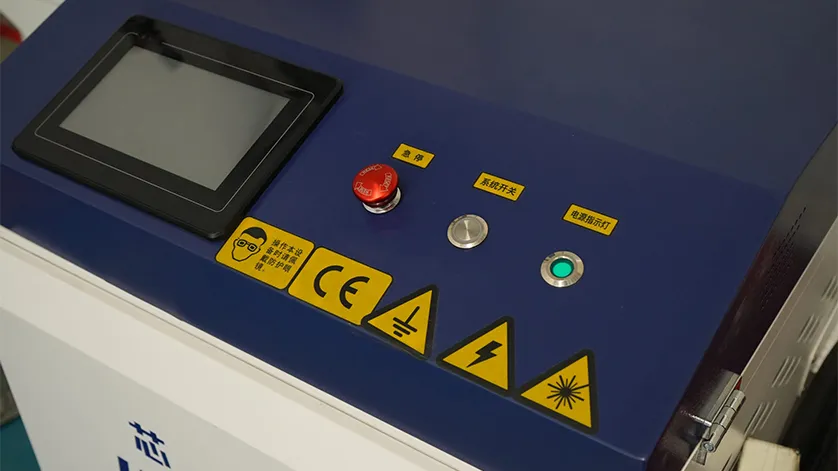

Sistema de controle de

One system can switch 5 different working models, support multiple languages.

The operation is simple and clear. Welding parameters are saved in the controller system, You can do easy welding even with little welding experience.

Visita Ao Cliente

O HWlEiC série de HJ fornece uma boa relação custo-eficiência e com alto desempenho para várias indústrias em busca de atualização de metal métodos de processamento e melhorar a competitividade.
